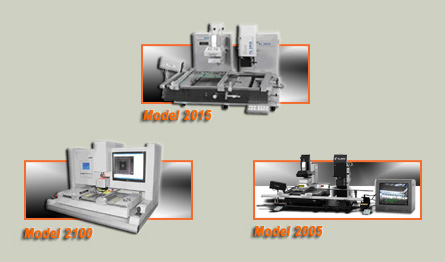

BGA REPAIR STATIONS CROSS COMPARISON |
||||||
| Specifications | Model 2005 | Model 2015 | Model 2100 | |||
| Total Power | 1600W | 3000W | 5000W | |||
| Max PCB Size | 300x300mm |
420x500mm | 600x500mm | |||
| Component Size | 2x2mm-60x60mm | 2x2mm-60x60mm | 2x2mm-60x60mm | |||
| Monitor | Monitor | Monitor | Monitor | |||
| Botton Preheaters | IR 400Wx2 | IR 500WX4 | IR 400Wx8=3200W | |||
| Heaters | Top IR 180Wx2 | Top IR 180Wx4 | Top & Bottom Hot Air 800W ea. | |||
| Profile Sensor | IR Non Contact | IR Non Contact | K Sensor | |||
| Align & Placement | Precision | Precision | Optical | |||
| Cooling | Top | Top | Top & Bottom | |||
| Differentiation | RPC | RPC | Hot Airflow Technology | |||
| Differentiation | Adjustable Aperture Directs Heat To Components | Adjustable Aperture Directs Heat To Components | Nozzles Direct Airflow To Part | |||
| Differentiation | Soldering Station | |||||
