Everything NSM & More! New JT MS-450
In addition to all the NSM has to offer, the MS-450 wave solder machine takes it up a notch with all of the NSM features plus addition features with added benefits available now!

MS-450 ADDITIONAL FEATURES:

• Heavy duty Titanium LL double hook duck fingers Y1 option.
• Improved feeder power load guide increases adjustability of solder board to pallets for improved stability and accuracy of speed management.
• New drip tray to catch grease, oil, flux and solvents.
• New exhaust materials prevent corrosion rubberized part won't eat through during cleaning.
• Improved heavy duty exhaust motor.
• Larger solder pot capacity up to 620KG.
• Larger exhaust rail.
• Heavy duty cooling blower.
• Overflow plate to prevent spillage onto solder pot and cooling blower.
• New flux reclamation box.
• Added convenient unload slide



ZOOM

HEAVY DUTY TITANIUM FINGERS:
• Duck Tail Fingers or Y1 option for a smoother improved grip with shorter span



ZOOM

IMPROVED FEEDER POWER LOAD GUIDE:
• Improved feeder power load guide increases adjustability of solder board to pallets for improved stability and accuracy of speed management.




ZOOM
 NEW DRIP TRAYS:
• New drip tray to catch grease, oil, flux and solvents.

ZOOM

NEW EXHAUST MATERIALS:
• New exhaust materials prevent corrosion rubberized parts won't eat through during cleaning.





ZOOM		 IMPROVED HEAVY DUTY EXHAUST MOTOR:


ZOOM
 LARGER EXHAUST RAIL:

ZOOM		 HEAVY DUTY COOLING BLOWER:

ZOOM		 NEW OVERFLOW PLATE:
• New Overflow plate to prevent spillage onto solder pot and cooling blower

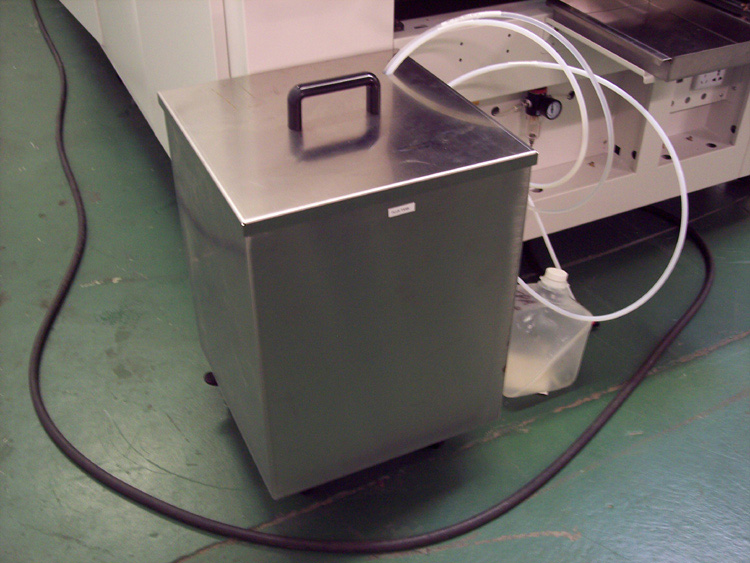

ZOOM		 NEW FLUX RECLAMATION BOX

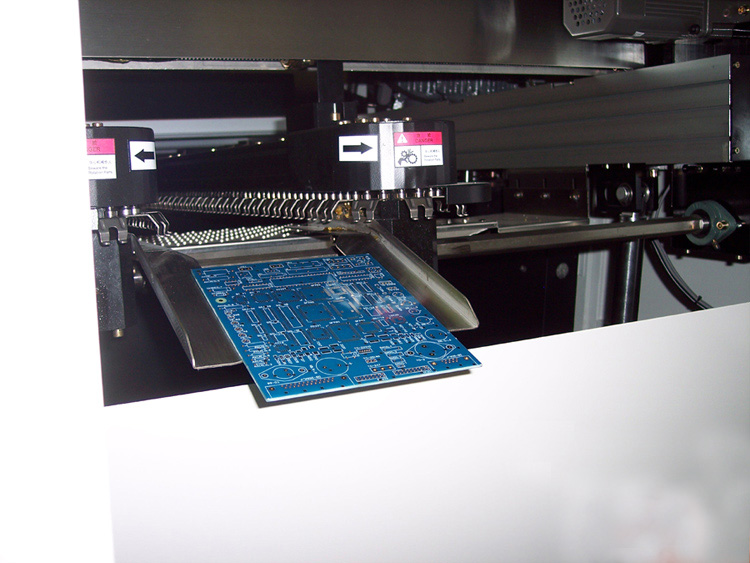

ZOOM 		NEW UPLOAD SLIDE:
• New added convenient upload slide


NSM 450 FEATURES:

• Newly designed for easy access to all internal components.
• Newly developed Electromagnetic Pump System or Standard Motor Driven Pumps.
• Utilizes Windows XP Operating System for optimizing process control and IBM computer. All quality components are used such as: Siemens PLC, and Panasonic motors.
• Computerized spray-fluxing unit.
• Three zones of preheat with independent control of the temperature and airflow.
• Advanced MHD technology, even & consistent wave surface; no mechanical moving parts, reduced dross generation and ease of maintenance.
• Optional Nitrogen System.
• Forced cooling of the solder joints to enhance solder joint reliability and reduce solder defects.
• Solder pots are easily changed for running dual alloys.




OPERATION & CONTROL SYSTEM:
• IBM Computer • Siemens PLC • Windows XP Software • Current Leakage Protection System • Auto Power On/Off Function • PCB Production Report Database • Real-Time Monitoring & Daily Report • Board Exit Sensor • Multiple Alarms Display • Each Heating Zone Profile Recording Chart • On-line Edit Function


  FLUX SPRAYING SYSTEM
• Flux Auto-Spray System • Flux Volume Control • LUMINA Flux Spray Nozzle With Self Clean Feature • Flux Spraying Advance & Delay Function • Air Knife Inlet & Exit Of Spray Fluxer • Controls For Flux Nozzle Vertical Air Pressure • Stepper Motor Drive • FLUXER OPTION Ultrasonic Spray Fluxer With Sono-Tek Ultrasonic Nozzle

  PREHEATING ZONES
HEATER CONFIGURATION • 3 Force Convection Preheat Zones 1800mm Long Total • Blower Motor With Speed Adjustment • Quartz Thermal Compensation Before Solder Pot PRE-HEAT OPTION • Top Side Preheat IR - Max 3



CONVEYOR
• PCB Component Height 160 mm • PCB Max Width 450 mm • Power Loading Chain Buffer in Entrance 300 mm • V or L shape Titanium Alloy Fingers With Quick Replacement - No Tools required • Powered Finger Cleaner For Solder Removal At Unload End Also Finger Cleaner With Liquid,Brush & Catch Screen AT Load End • Conveyor Rail Angle Adjustment With Rail Angle Indicator • Manual Width Adjust Hand Crank CONVEYOR OPTIONS • Motorized Conveyor Width Adjustment • Center Board Support


  SOLDER POT
• Stainless Solder Pot with Stainless Nozzles • Mechanical Motor Driven Pumps • Solder Pot In/Out Motorized • Solder Pot Up/Down Motorized • Dual Controls front and back to move solder pot • Alarm for Low Solder Level • Chip Wave with 3 Holes Nozzle (PCB Max Width: 450mm) • SM450 Nozzle in Second Wave (PCB Max Width : 450mm) • Over Heat Limit • Protection (Dual Safety Control) • Solder Spill Detection and shutdown OPTIONS FOR SOLDER POT - MOTOR PUMPS • Stainless Steel Solder Pot with Titanium Nozzles and Mechanical Motor Driven Pumps • Full Titanium Solder Pot with Titanium Nozzles and Mechanical Motor Driven Pumps - MAGNETIC DRIVE PUMP Stainless Steel Pot & Nozzles with Magnetic Drive Pump • Stainless Steel Pot with Titanium Nozzles & Magnetic Drive Pump • Full Titanium Solder Pot & Nozzles with Magnetic Drive Pump



  NITROGEN SYSTEM
• Flow Meter • Closed Tunnel Structure OPTIONAL• Oxygen Analyzer
  ELECTRONIC HARDWARE FEATURES
 • Panasonic Motors For Conveyor Drive, Width Adjust & Angle Adjust • NPG Motor For Solder Pot Drive • Pan World Magnetic Drive Pump Motor For Finger Cleaner • Sanyo Stepper Motor For Fluxer Drive Siemens PLC • Omron Time Clock • Omron Relays • Schneider Electric Contactors • Merlin Gerin Circuit Breakers • Delta Phase Inverters




COOLING SYSTEM
• External Low Maintenance Water Cooling System • Audible Alarm With Tower Light • PCB Width: 50mm To 450mm
