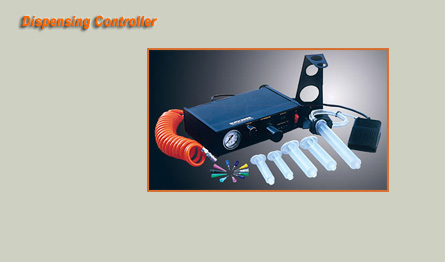

Qualitek 982B Dispenser
• Feature:
The dispense function and material quantity is controlled by a timer.

The amount of fluid or gel dispensed may be changed as desired by adjusting the air pressure, and choosing an appropriate needle.

Materials that may be dispensed include: red gel, yellow gel, epoxy resin, tin solution, silica gel, soldering fluids. Other materials with similar viscosity may also be dispensed.

The unit may be controlled by pedal switch or manual mode.
A wide variety of barrels and needles are available.


SPECIFICATIONS
Dispense
numerous optional modes
Dispensing time
0.01-99.99s adjustable
Timing intervals
0.1-9.9s adjustable
Repeat Tolerance
0.5%
Size
23.8cm*15.0cm*6.0cm
Weight
1.7Kg
Internal voltage
24VDC
Min deposit size
0.01ml
Air Input
  35-100Psi(0.25-0.7Mpa)
Air output
1-100Psi(0.01-0.7Mpa)
