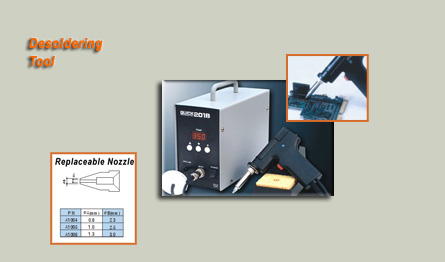

QUICK 201B ESD DESOLDERING TOOL
• Feature:
• The Quick 201B ESD desoldering tool is safe by design. It prevents PCBs from being damaged by static electricity and currents.
• Equipped with a powerful built-in vacuum pump imported from Japan.

• Closed loop temperature cortrol for heating the system, precisely.
• 36V power supply is safe and reliable.
• LED digital display, one touch button temperature control. Auto idle is an available option.
• Digital temperature calibration.
• Nozzles and heater are specially designed so that the melting solder can be absorbed into the filter without frequent maintenance increasing efficiency.
• The vacuum hose is heat resistant to protect it from the hot soldering iron.

SPECIFICATIONS
Pump Power
12V/2A
Heating Power
90W/36VAC
Temperature
200°C-450°C
Pump
Diaphragm
Vacuum Pressure
600mmHg
Tip to Ground Resistance
< 2¦¸
 Tip to Ground Potential
< 2mv
Dimension
105X250X165mm
Weight
 About 4kg
