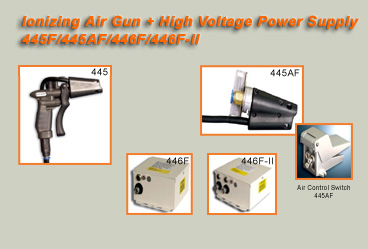

Qualitek 445F/445AF/446F/446F-ll
IONIZING AIR GUN + HIGH VOLTAGE POWER SUPPLY
• Ion balance: ±10V; Neutralizes static charges rapidly. • Stable ion balance • Exterior adjustable • Easy to use • Built-in silencer greatly eliminates most noise • Capacitor coupling high voltage design is safe and reliable.
• Qualitek 445AF: Nozzle can be adjusted as needed.
• Qualitek 445F: Adjustable air volume.
• Qualitek 446F-ll: Will accommodate two loads.
SPECIFICATIONS
Supply Voltage
220V AC 50Hz/60Hz
High Voltage Output
7KV (-40%-0)
Sub Short-Circuit Current
<3mA
Rated Power
<30W
• Neutralize static voltage to 10V or below within 10 seconds.
• Neutralize requirement: 300mm away from front panel with largest air volume.

TIME FOR STATIC NEUTRALIZING:
AIR PRESSURE
DISTANCE
15cm
30cm
45cm
60cm
0.2M pa
Decay time(s)
0.9s
1.0s
1.3s
1.4s

1.7s
2.1s

2.1s
2.9s
0.4M pa
Ion balance(V)
Decay time(s)
-1V
0.8s
1.0s
+5V
1.0s
1.3s
+6V
1.3s
2.0s
0V
1.9s
2.5s
0.6M pa
Ion balance(V)
Decay time(s)
0V
0.8s
0.9s
+1V
1.0s
1.4s
+1V
1.4s
1.8s
0V
1.5s
2.7s
Ion balance(V)
-2V
-4V
+6V
-14V
• Ambient Conditions: 22°C, Relative Humidity 60-70% • Test as per ANSI/EOS/ESD-S3.1-1991 standard
• Neutralizing time from 1000V to 10V and ion balance voltage.
