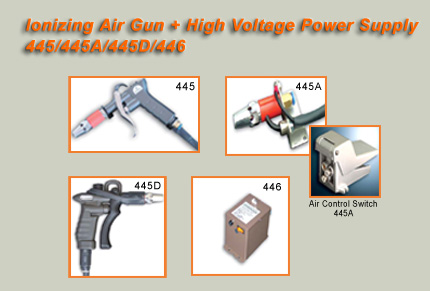

Qualitek 445/445A/445D/446
IONIZING AIR GUN + HIGH VOLTAGE POWER SUPPLY
• Small conpact design. • Easy to use. • Rapidly neutralizes static charges. Suitable for removing mini sensitive components and materials. • With the regulator of remnant voltage inside, adjust the ion balance quickly and efficiently. • One power supply can be connected to two ionizing air guns at the same time.
SPECIFICATIONS 445
Power Supply Frequency
50Hz/60Hz
Secondary Output Voltage
4.0KV AC
VA Rating (max)
20W
Overall Size
165(L)*103(W)*115(H)mm
Approximate Weight
3.8Kg
• Ambient conditions: About 0-50°C - Relative humidity 60-70%
• Life expectancy: About 10000 hours (based on 8h/d, 250d/y)
• The standard length of high-voltage wire is 3 meters

TIME FOR STATIC NEUTRALIZING:
PRESSURE
AIR FLOW
DECAY TIME
NOISE
0.2M pa
0.06m3/min
1.2s
<71dB
0.4M pa
0.12m3/min
0.6s
<88dB
0.6M pa
0.18m3/min
0.4s
<95dB
0.7M pa
0.20m3/min
0.3s
<98dB
Testing distance: 15 cm from the outlet of air gun.
