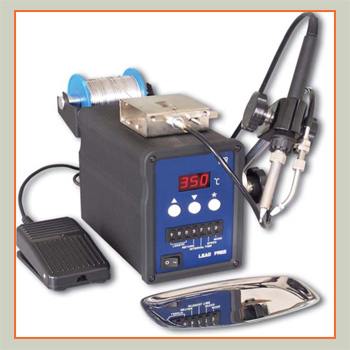

Qualitek 376D Self-Feeder Lead Free Soldering Station
• High frequency heating, rapid heating and quick thermal recovery for lead free soldering. Many types of tips are available and are easy to replace.
• Micro computer control; Temperature calibrates digitally; Temperature set by keys; Auto sleeping available.
• Auto and manual ways of solder feeding optional, auto solder feeding mode can solder nine successive soldering points.
• Imported motor, automatic feeding, sliding switch design. More functions available and adjustable, such as feeding speed, feeding volume, interval time, backing time etc.
• Two types of feeding hose optional, easy to use. Long hose suitable for active soldering. Short hose suitable for fixed soldering.
• Exclusively designed for lead free soldering.
• Optional pedal or manula switch.
| View All Soldering Stations | Soldering Accessories |



SPECIFICATIONS:
OPERATING VOLTAGE FOR HEATER
36V/400K Hz
RANGE OF SOLDERING TEMPERATURE
200°C-420°C
TEMPERATURE STABILITY
±2°C (Stationary Air No Load)
TIP LEAK VOLTAGE
<2mV
TIP TO GROUND RESISTANCE
<2
MAX POWER CONSUMPTION
90W
FEEDING SPEED
About 2.7mm/s-27mm/s (36°/s-360°/s)
FEEDING INTERVAL TIME
0-2.7s
FEEDING VOLUME
0-150mm
BACKING TIME
0-0.9s(About 0-25mm, Regular speed: 360°/s)
FEEDING MODE
Auto (1-9)/Manual (0)
DIA. OF WIRE USABLE
0.6, 0.8, 1.0, 1.2mm
SOLDER WIRE USABLE
<1Kg (roll)

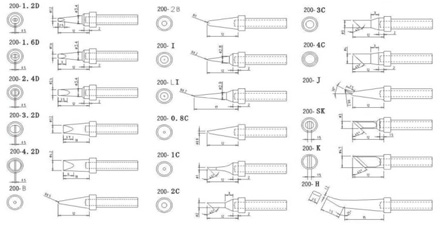

REPLACEMENT TIPS
